An-148-201

Topic title: ICAO code
Example: AN-148-201

:small_airplane: Aircraft Model (Name & Manufacturer)
Example: Antonov AN148-201 by Antonov

:globe_showing_europe_africa: Aircraft Category
Choose one: / C
(Use ICAO wingspan aircraft classification)

:compass: Purpose or Role in Game
Regional jet, Cargo hauler, Military transport?

:chart_increasing: Why should this aircraft be added?
What does it add to the game in terms of gameplay variety, realism, or strategy?
You are so great company because you already andded some types of ANtonov`s plane family Antonov is a patrt of wordโ€™s aviation.
I think that adding this Antonov -manufactured aircraftwill expand the existing lineup in the game and give it a unique toch, as none of the simular games feature this plane
Unfortunatly there are so few games featuring the Antonovaircraft linegroyp
:airplane: Airlines that use it
List a few major operators (real-world), especially those already in WoA.
Aero Svit, Ocean Airlines, Motor Sich, Cubana Air? Antonov Aerlinies? Ukranian Air Force
:magnifying_glass_tilted_left: Special characteristics or variants
Optional: Unique traits like range, capacity, STOL, or alternate versions (e.g. cargo, military)
he AN-148-201 is a regional passenger jet that meets all the modern world requirements, safety and ecological standards. AN-148-201 has 95% commonality with AN-158-100, in particular, they have common main systems, engines, equipment in the cockpit, flight control system, procedures of the crews training. AN-148-201 is intended to carry
92 passengers over a distance up to 3500 km. AN-148-201 is powered by D-436-148 engines. The engine equipped with the automatic control and monitoring systems which optimize operation of the engines at all the flight stages, increase their reliability, decrease fuel consumption and direct operating costs.

Overall Dimensions

Overall length (m) 29,13
Overall height (m) 8,19
Wing span (m) 28,91

Performance

Max. cruising altitude (m) 12200
Max. cruising speed (km/h) 870
Range - 92 pax (km) 3480
MTOW, kg 43700
Max. payload (MPL), kg 9000
Maximum landing weight (MLW), kg 37800

Modifications

  1. AN-148 201A
  2. AN-148 201B
  3. AN-148 201E

Modern navigation and radio communication equipment, multifunctional indicators, fly-by-wire system allow operation of the AN-148-201 on any air routes including those ones with intensive air traffic, under VFR and IFR weather conditions, in day and by night. The aircraft is equipped for both manual and automatic control including flights on preprogrammed route. Automatic approach according to the norms of I, II and IIIA (option) ICAO categories, horizontal and vertical navigation, take-off and landing by SID and STAR, automatic monitoring of systems during a flight and automated one on ground with sending information to the crew and technicians are provided.

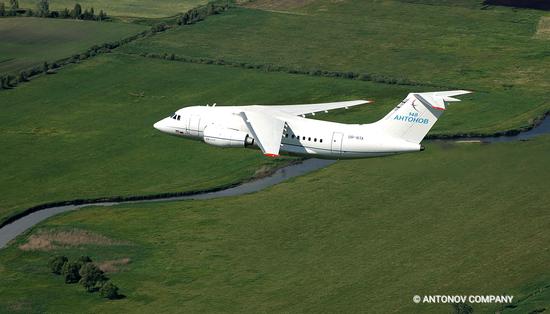

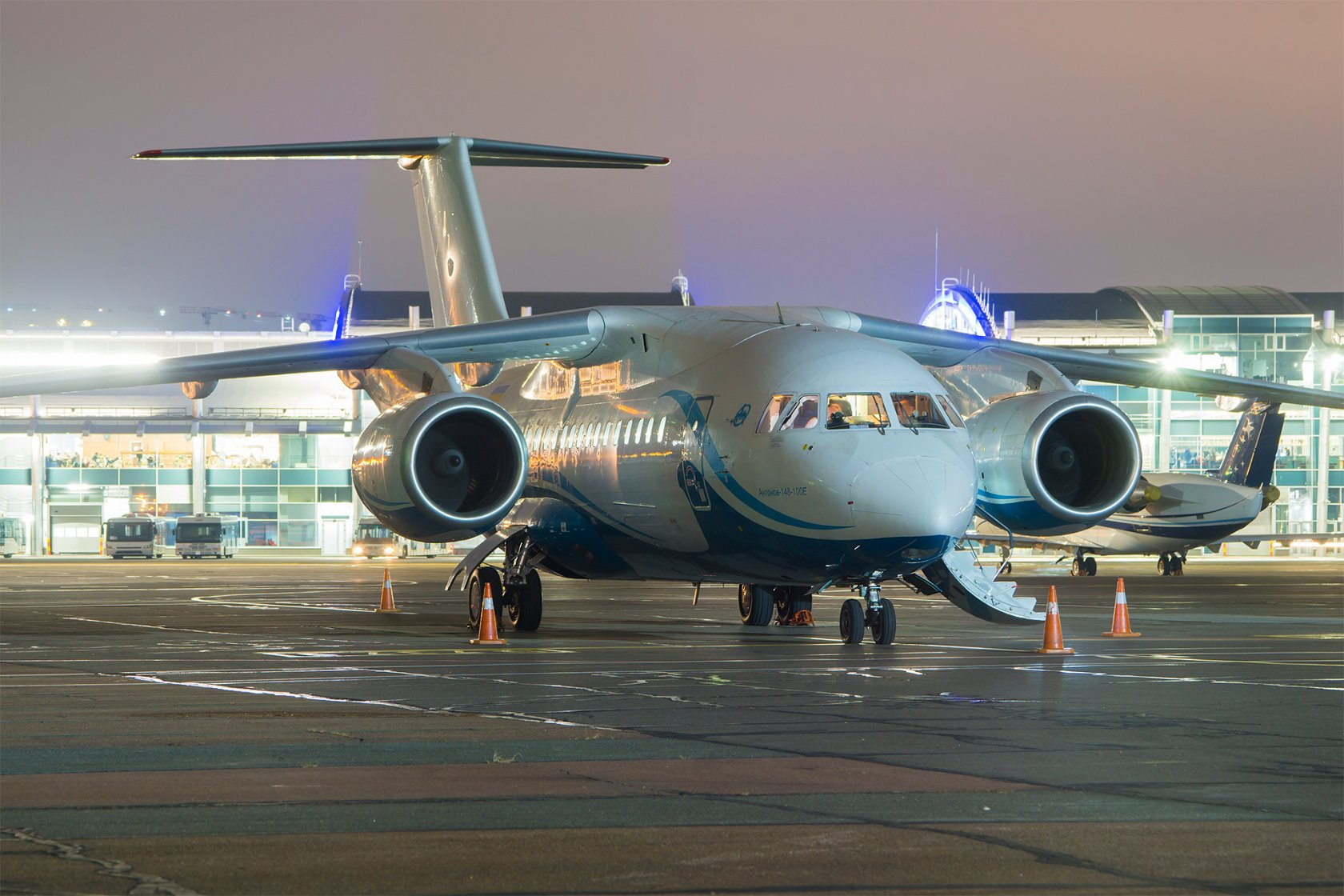

AN-148-201

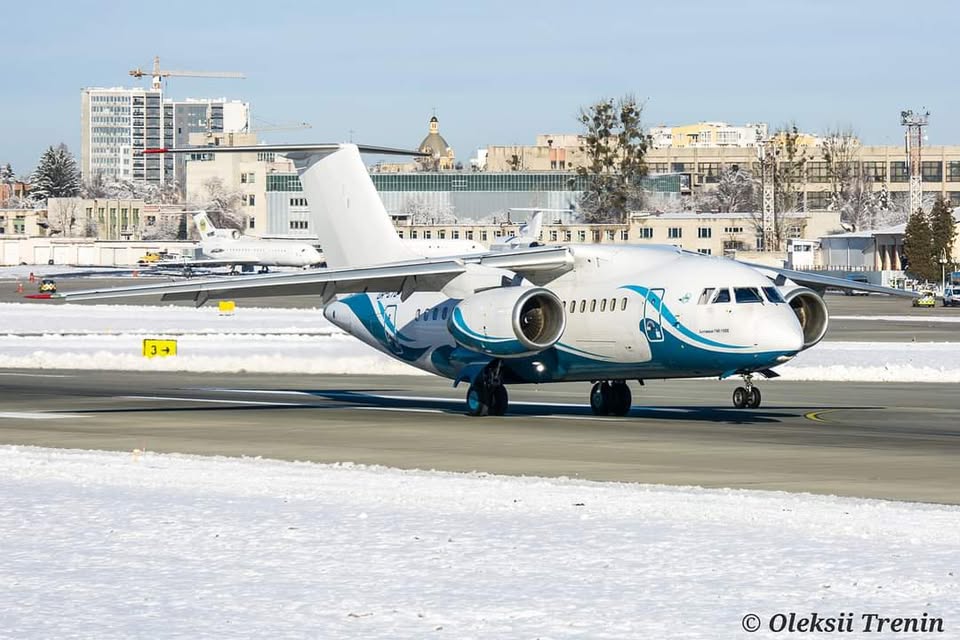

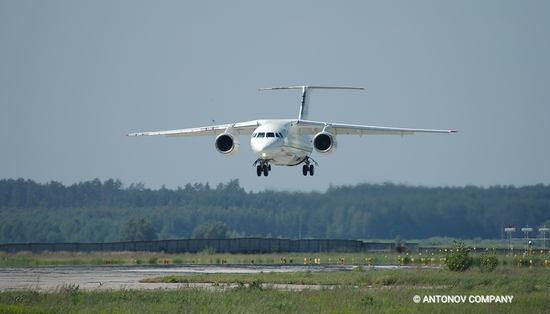

Owing to high-wing position AN-148-201 can be safety operated from/to wide rate of airfields with different qualities of runways. D-436-148 engines meet all the current ICAO standards on the ecology and noise level.

The level of the AN-148-201 passenger compartment comfort corresponds to that of the modern long-range aircraft.

Due to convenient position of the underโˆ’floor cargo compartments it is not necessary to use special ground equipment when loading/unloading the baggage

Modern navigation and radio communication equipment, multifunctional indicators, fly-by-wire system

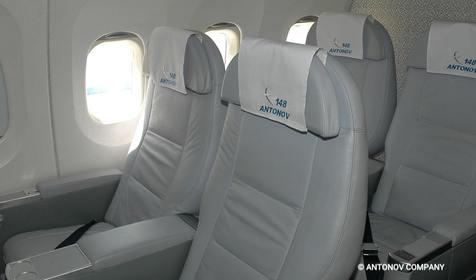

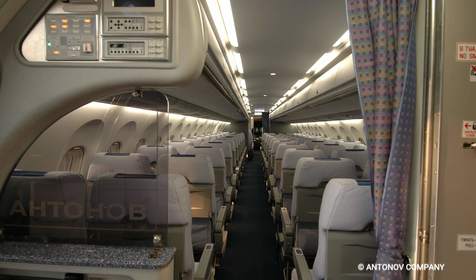

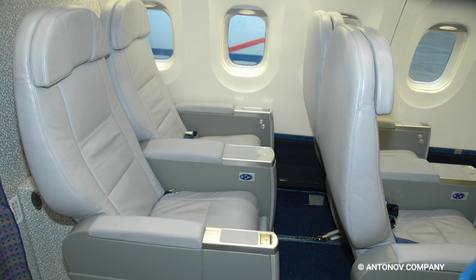

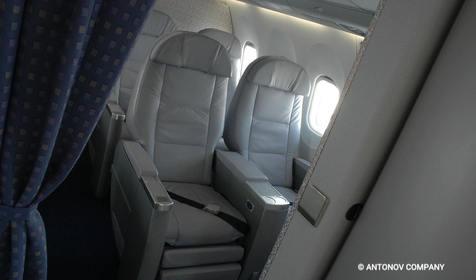

Passenger compartment

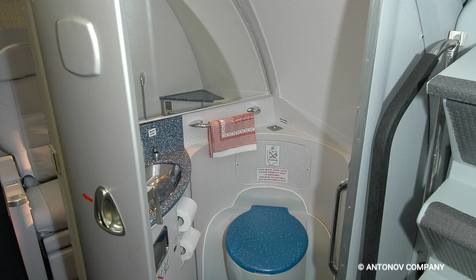

The level of the AN-148-201 passenger compartment comfort corresponds to that of the modern long-range aircraft. In particular it is reached due to rational layout of service premises, ergonomic optimization of common and individual spaces of passenger cabin, use of modern seats, interior design and materials as well as low noise level. The passenger compartment can be equipped with modern entertainment system. Hand luggage, including suitcases meeting the IATA standards, can be accommodated on roomy over-head baggage shelves. The AN-148-201 means comfort for passengers, sufficient economic advantages for operators, convenience for crew and ecologic safety for environment.

Previous

gallery-slide

gallery-slide

gallery-slide

gallery-slide

gallery-slide

gallery-slide

gallery-slide

gallery-slide

gallery-slide

Next

  • 1
  • 2
  • 3
  • 4

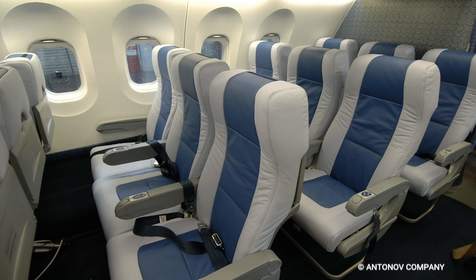

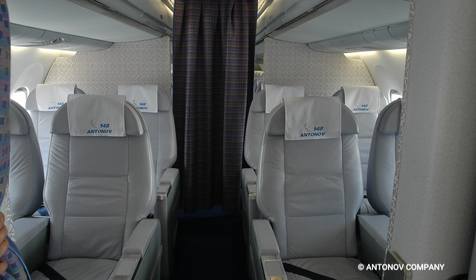

Passenger compartment arrangement

AN-148-201 passenger compartment has the following layout versions: from 82-seat two-class layout with pitch of 28โ€™โ€™ in economy class, and 35โ€™โ€™ in business class to 92-seat single-class layout with pitch of 28โ€™'.

Cargo compartment volume (mยณ) 12.4

gallery-slidegallery-slidegallery-slidegallery-slidegallery-slidegallery-slidegallery-slidegallery-slide

Flight range of AN-148-201

:camera_with_flash: Optional: Links or references
Wikipedia, manufacturer site, aircraft database, etc.
